The "Imp"
- a multi-purpose dinghy.

Principal dimensions:


        L.O.A.       4.03 m  (13' 2.7")
	Beam        1.59 m    (5' 2.6")
	Sail area    6.9 m2   (75 sqft).

She has buoyancy compartments in the enclosed aft side-seats and the forepeak and is generally very spacious and stable.

Construction:
Material: 6mm (1/4") Marine plywood
Method: Epoxy stitch and glue (taped seam)

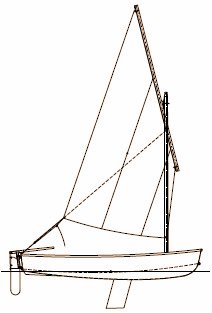

This dinghy is aimed at the family who enjoys sailing a simple mid-size boat in their home waters. The Imp has a sister that can be taken apart and nested for easier transport and storage, the 'Normus'. 		Sailplan
The ply/epoxy "Imp" will weigh about 59kg/130lb if built with Okume ply and is of the single chine type for simplicity of build. The ease of assembly can be seen in the Pinta assembly animation ..

Sails:
For this dinghy I designed a standing lug rig. The lug rig is one of the simplest aa well as effective rigs. Lug rigs have good performance to windward and the boomless main makes for a safe cockpit, excellent for recreational sailing!.

The standing rigging consists of a mast, which just slips into the boat without any shrouds or stays and a yard.

Both are simple 'poles' that can be made from standard aluminum pipes or timber depending on preference. 		Imp01
Propulsion:
With its long waterline length, the 'Imp' will be easy to row, so I recommend fitting rowlocks at the mid thwart.
For longer hauls of course an outboard can be fitted. The transom height is suitable for a short shaft outboard motor.
Suggested power: 3.3-6 HP, max. 15HP.

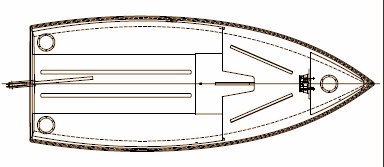

The plan shows how much space the boat offers for a family. Note the long side seats and a good rowing position on the mid-thwart. PLAN
Plan Prices
also read my Ordering Guide
Plans for this dinghy consist of three A0 (44"x33")sheets and one A1 (33"x22") sheet and detailed building instructions.

This set of plans is suitable for lofting all your own hull panels, bulkheads and all other parts.

 Plan costs:
€40 (+/-US$52) - which entitles you to the building of one boat.
Total costs including shipping:   €50
(+/- US$65)

In addition to the regular plans you can obtain full-size patterns for €45 (+/-US$60) plus shipping charges (international).
