Preview of Plans for "Sinbad" Nesting, Sailing Dinghy

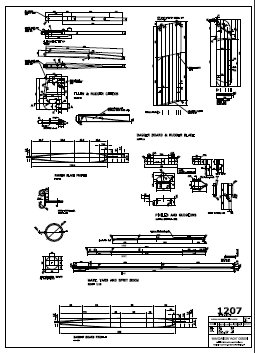

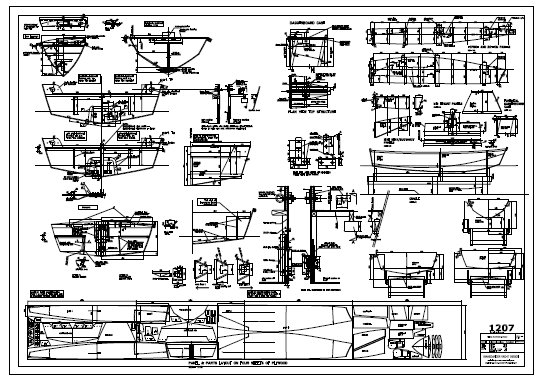

A thumbnail preview of the plans package for this dinghy is shown below:
The two larger sheets are of the metric A0 format - (44"x33")
Whereas the third sheet is A1 format - (22"x33").
Every part necessary for the construction is shown clearly and fully dimensioned for easy lofting.

Included in the package is a detailed 30-page manual containing step by step building instructions, list of materials, notes on materials used in the project and epoxy application techniques.

Aside from the info contained in the appendix of the manual you will find a lot of additional info in the how-to articles collection which may be accessed via the Tips, Tricks, Articles Menu.

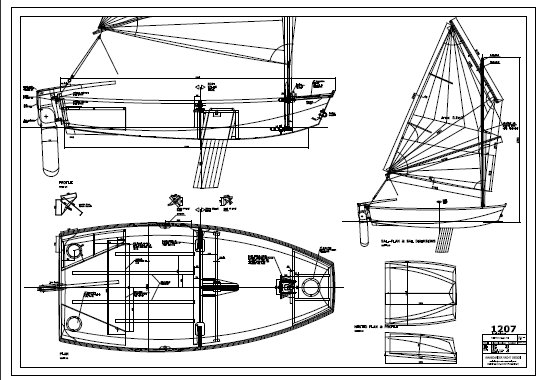

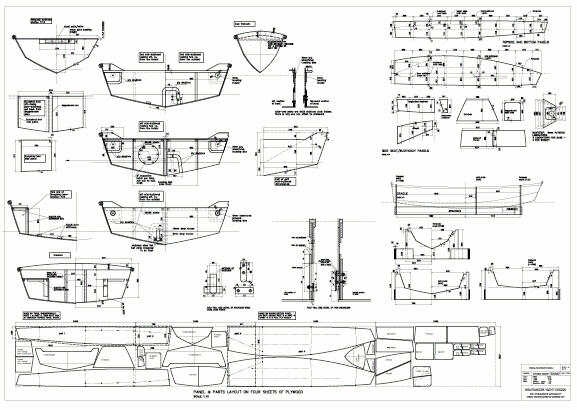

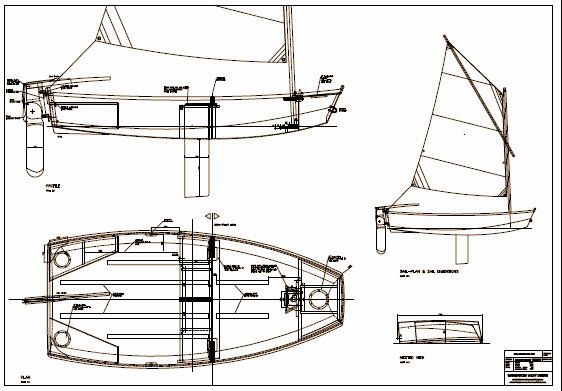

Sail plan

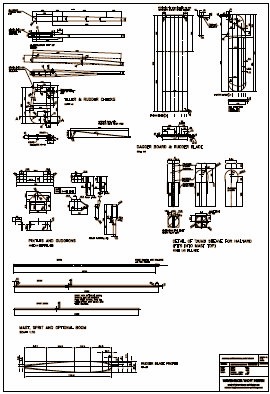

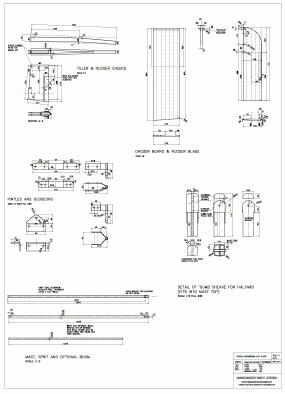

Sail plan

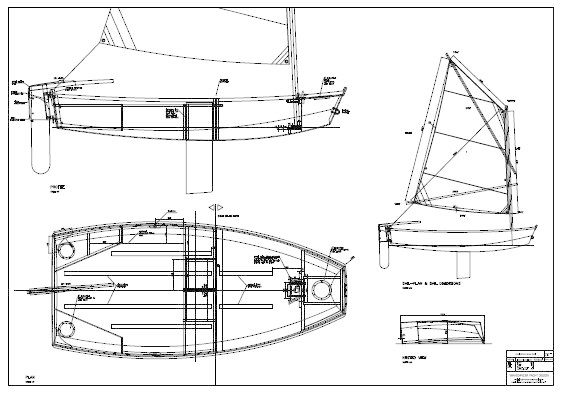

Sail plan

Top of Page


For further information or for ordering of plans, contact me by email: Winfried at WaveDancer-Yacht Design
