Overview: Plywood Stitch and Glue Sailing & GP Dinghies

Dinghies in this listing have been specifically designed for this construction method.
Plans for all my designs are very detailed - that's just how I like to work - I have had very positive buyer feed-back about that!
You get fully dimensioned hull panel and bulkhead layouts, sail and fitting plans, even the building jig, where it is required, will be detailed.
So there is no guessing, every part that is needed for the boat is shown on the plans.

My aim is to make building any one of these boats a breeze - you do not have to be an experienced boat builder!
Simple tools and your wish to own an attractive, fun sail boat is all you need.

Aside from the drawings, each plans package comes with a comprehensive building manual that details the building steps, a material list and comprehensive information on epoxy glass building techniques.
Lots more general boat building info is available on this site, just click Tips, Tricks, Articles menu .

Note:

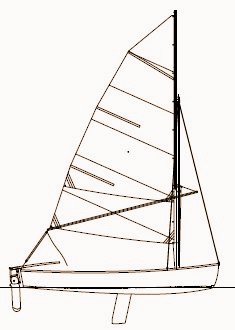

This 'Overview' is a convenient way of listing a number of Sailing and General Purpose Dinghy designs, with brief stats and sail plans, so you can home-in on something that interests or suits you.

Each design listed below links to a comprehensive detail page with sailplans, pictures and descriptive text.
Just click the link next to: Go to detail page >> to study this page.
Should you have further queries, please email me!

Plan Orders and Payment:
For details on how to order plans, how to pay and how I ship your order see my Ordering Guide

"Pixie"

Hull type: Single Chine Pram Dinghy.
Principal dimensions:
L.O.A. 2.33 m (7' 7 3/4" ),
Beam 1.37 m (4' 6"),
Sail area - 3.25 m2 (35 sqft).

Plan costs:
€25 (+/-US$32) - which entitles you to the building of one boat.

Total costs including shipping: €35
(+/-US$45)

Go to detail page >> Pixie 2.3m (7' 7")

"Piccolo"

Hull type: - Nesting Dinghy (Modified Single Chine Pram)
Principal dimensions:
L.O.A. 2.78 m (9' 01.5"),
Beam 1.435 m (4' 8"),
Length after taking apart: 1.45 m (4' 9")

Sail area - 3.06 m2 (33 sqft).

Plan costs:
€35 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping: €45
(+/- US$57)

Go to detail page >> Piccolo 2.78 m (9' 01.5")

"Sinbad"

Hull type: - Nesting Dinghy (Single Chine Pram)
Principal dimensions:
L.O.A. 3.08 m (10' 1"), Beam 1.43 m (4' 8"),
Length after taking apart: 1.71 m (5' 7")

Sail area - 4.16 m2 (45 sqft).

Plan costs:
€35 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping: €45
(+/- US$57)

Go to detail page >> Sinbad 3.08 m (10' 1")

"Dorita"

Hull type:- Nesting Dinghy (Dory/Single Chine mix)
Principal dimensions:

L.O.A. 3.12 m (10' 3.0"), Beam 1.53 m (5' 1/4"),

Length after taking apart: 1.63 m (5' 4")
Sail area - 4.50 m2 (42 sqft)

Plan costs:
€35 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping: €45
(+/- US$59)

Go to detail page >> Dorita 3.12 m (10' 3.0")

"Pinta"

Hull type: Single Chine.
Principal dimensions:
L.O.A. 3.2m (10' 6"), Beam 1.48m (4' 10")
Sail area: 5.9m2 (64sqft).

Plan costs:
€35 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping: €45
(+/- US$57)

Go to detail page >> Pinta 3.2m (10' 6")

"Alegra"

Hull type: Modified Single Chine.
Principal dimensions:
L.O.A. 3.35 m (10' 11.8"), Beam 1.475 m (4' 10 ")
Sail area: 5.0 m2 (54 sqft).

Plan costs:
€35 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping: €45
(+/- US$57)

Go to detail page >> Alegra 3.35 m (11')

"Oryx General Purpose dinghy"

Hull type: Single chine.
Principal dimensions:
3.51 m (11' 6.2"), 1.55 m (5'1"),
Sail area - 6.42 m2 (69 sqft).

Plan costs:
€40 (+/-US$57) - which entitles you to the building of one boat.

Total costs including shipping: €50
(+/- US$68)

Go to detail page >> Oryx 3.51 m (11' 6.2")

"Pandora"

Hull type: Flat Bottom Sharpie.
Principal dimensions:
L.O.A. 3.55 m (11' 7.8" ), Beam 1.54 m (5' 1"),
Sail area - 6.42 m2 (69 sqft).

Plan costs:
€35 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping: €45
(+/- US$57)

Go to detail page >> Pandora 3.55 m (11' 7.8")

"Piper"

Hull type: Single Chine.

Principal dimensions:

L.O.A. 3.68 m (12' 1"),
Beam 1.59 m (5' 2.6"),
Sail area - Main and working jib: 7.72 m2 (83 sqft).

Plan costs:
€40 (+/-US$52) - which entitles you to the building of one boat.

Total costs including shipping: €50
(+/- US$65)

Go to detail page >> Piper 3.68m (12' 1")

"IMP General purpose dinghy"

Hull type: Single Chine.

Principal dimensions:

L.O.A. 4.03 m (13' 2.7"),
Beam 1.59 m (5' 2.6"),
Sail area - 6.9 m2 (75 sqft)

Plan costs:
€40 (+/-US$52) - which entitles you to the building of one boat.

Total costs including shipping: €50
(+/- US$65)

Go to detail page >> Imp 4.03 m (13'2.7")

"PIRAGUA"

Hull type: Single Chine.

Principal dimensions:

L.O.A. 4.63 m (15' 2.3"),
Beam 1.66 m (5' 5.4"),
Sail area - 9.6 m2 (103 sqft)

Plan costs:
€45 (+/-US$56) - which entitles you to the building of one boat.

Total costs including shipping: €55
(+/- US$68)

Go to detail page >> Piragua 4.63 m (15' 2.3")

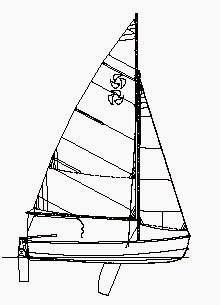

"Swift"

Hull type: Double Chine.

Principal dimensions:

L.O.A. 4.62 m (15' 2"),
Beam 1.98 m (6' 6"),
Sail area - Main and working jib: 12.05 m2 (130 sqft).

Plan costs:
€50 (+/-US$65) - which entitles you to the building of one boat.

Total costs including shipping: €60
(+/- US$77)

Go to detail page >> Swift 4.62m (15' 2")
